Infinite ISP

An Open Source Hardware Image Signal Processor Development Suite

Our full-stack ISP development solution provides a comprehensive package that includes algorithm research, RTL development and FPGA / ASIC implementation together with ISP Tuning Tool. The open-source ISP design package offers competitive image quality and performance of a baseline modern image signal processor.

Infinite ISP Pipeline

Infinite ISP Ecosystem

Infinite-ISP is a hardware Image Signal Processor development suite, complete with an Algorithm Development Floating Point Model, a Fixed-Point Reference Model (Golden Model), an RTL Design, FPGA / ASIC implementation and ISP Tuning Tool application.

Algorithm ModelFloating point ISP pipeline model
Reference ModelBit-accurate fixed-point model
RTL ISPHardware ISP in Verilog
FPGA Binaries FPGA Binaries (bitstream + firmware executable) with Infinite-ISP RTL optimized for AMD Xilinx Kria KV260 Kit
ISP Tuning ToolISP tuning tool (calibration, analysis, image quality)

Combined with floating-point model and bit-accurate fixed-point model of an ISP pipeline implemented in hardware RTL and ported to an FPGA, Infinite-ISP is a comprehensive development suite that caters to the needs of the imaging and vision community, be it professionals, researchers or open source enthusiasts.

Contribute on GitHub

Join a comprehensive Image Signal Processor development ecosystem today by contributing to Infinite-ISP GitHub repository.

Infinite-ISP Starter Kits

AMD Xilinx Efinix

Kria KV260 ISP Reference Design

Ti180J484 ISP Reference Design

4 Megapixel 10-bit Image Signal Processor for Bayer Image Sensors2 Megapixel 10-bit Image Signal Processor for Bayer Image Sensors
RGB/YUV output
  • 2048x1536 @ 30fps
  • 2592x1944 @ 15fps
RGB/YUV output
  • 1920x1080 @ 30fps
All Bayer image sensors up to 4 Megapixels
  • Onsemi AR1335
  • Omnivision OV5647
  • Sony IMX219
All Bayer image sensors up to 2 Megapixels
  • Sony IMX219
FPGA Binaries: Release v1.3Coming Soon!

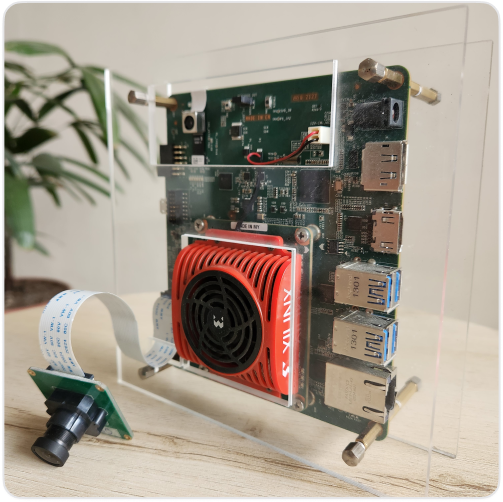

Infinite-ISP Starter Kit - AMD Xilinx Kria KV260

Camera-ready solution available with Infinite-ISP Kria SOM

Markets & Applications

Develop and deploy your vision solution and camera product with our ready-to-use Infinite-ISP Kria Reference Design. Infinite-ISP can be seamlessly integrated into your automotive, surveillance, broadcast, cinematic & consumer camera systems.

ISP optimized for AMD Kria

Whether your camera system requires working with AMD Xilinx Kria SOM or the complete Kria KV260 Kit, Infinite-ISP comes paired with both, offering seamless integration and quick time-to-market.

End-to-end Camera Solution Demonstration

Check out our Infinite-ISP Release v1.3 for AMD Xilinx Kria K26 SOM / Kria KV260 AI Starter Kit. The FPGA Binaries work out of the box for Kria KV260 AI Starter Kit and implement an end-to-end camera solution with the Onsemi AR1335 image sensor (provided in the AMD Xilinx Kria Kit’s official accessory pack), Sony IMX219 image sensor (Raspberry Pi camera module v2) and the Omnivision OV5647 image sensor.

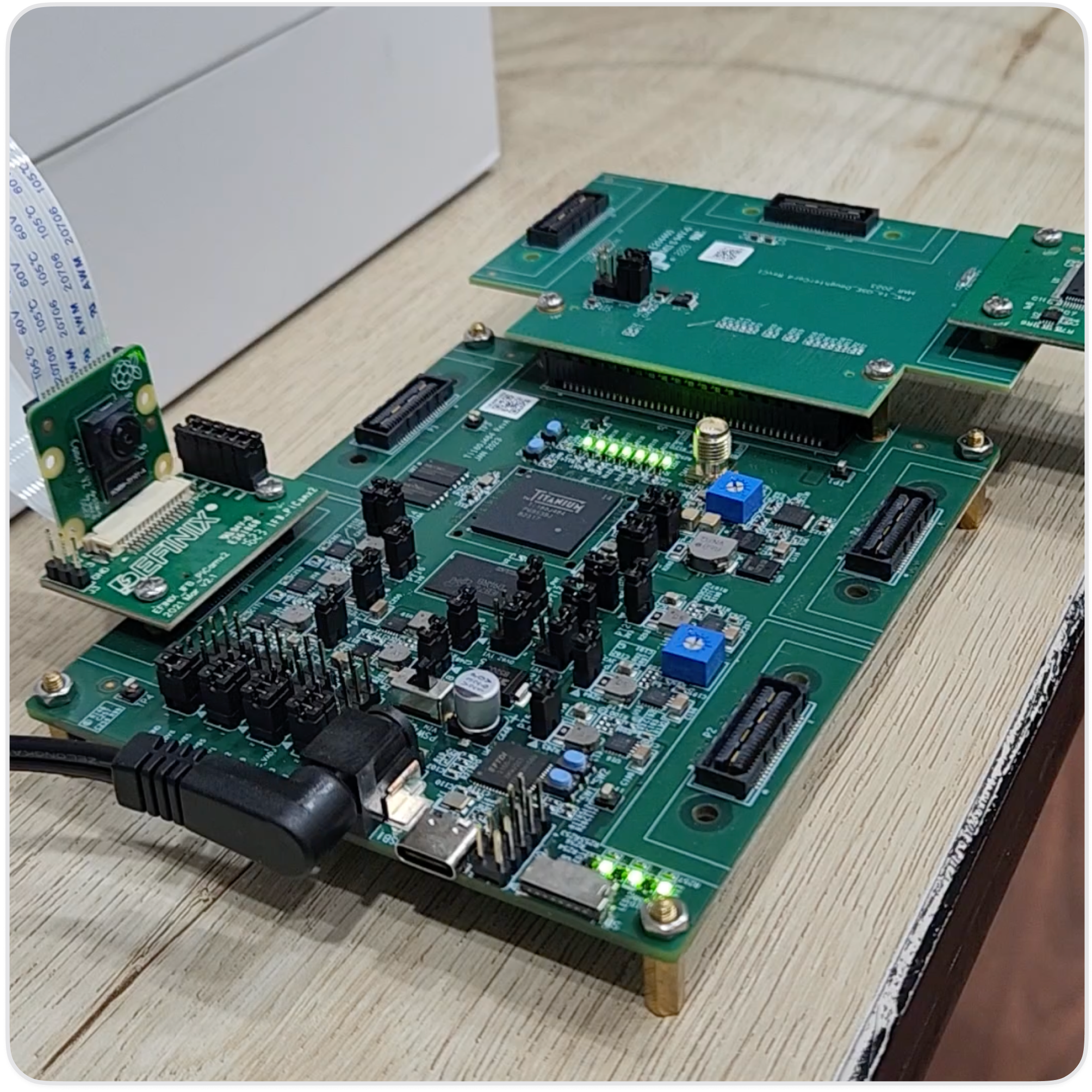

Infinite-ISP Starter Kit - Efinix Ti180J484

Infinite-ISP Reference Design is also available for Efinix FPGA!

1080p Imaging Kit

The Infinite-ISP Titanium Ti180 J484 Development Kit is an end-to-end 1080p imaging system demonstration on Efinix FPGA. Users can capture a stream from the Sony IMX219 image sensor module (Raspberry Pi v2) provided with the Kit and obtain a processed output stream on an HDMI monitor.

UHD Vision Kit

Infinite-ISP Edge Vision SoC (EVSoC) on Ti180 J484 Kit offers a UHD (1080p) @ 30fps customizable and read-to-use embedded vision system for customers willing to develop camera systems using Efinix FPGAs.

Have questions about the right ISP for your target application? Our team is ready to assist!

Infinite-ISP Tutorials

Infinite-ISP Tutorial 1: Getting Started

Infinite-ISP Tutorial 1: Getting Started

Welcome to our open-source project on image signal processor (ISP) pipeline known…

Infinite-ISP Tutorial 2: Working with Infinite-ISP​

Infinite-ISP Tutorial 2: Working with Infinite-ISP​

This tutorial will walk you through various image processing tasks, including the…

Infinite-ISP Tutorial 3: Contributing to Infinite-ISP

Infinite-ISP Tutorial 3: Contributing to Infinite-ISP

Infinite-ISP, an open-source project, provides a versatile platform for processing raw images.…
